Views: 0 Author: Site Editor Publish Time: 2026-10-23 Origin: Site
AI fabric defect detection uses industrial cameras, image-processing technology and AI algorithms to identify abnormal patterns on fabric surfaces. With a properly configured inspection system, textile manufacturers can detect and locate defects such as broken warp yarns, oil stains and holes, then record the results for quality review. Research on automated fabric inspection has demonstrated the feasibility of detecting and classifying these defect types using machine vision.
For textile mills, the goal is not simply to find defects. It is to make inspection more consistent, improve defect traceability and help quality teams respond to problems before affected fabric moves further through production.
An AI fabric inspection system generally follows four steps:
Image capture: Industrial cameras capture images of fabric as it moves through the inspection area.
Image analysis: Image-processing methods and AI models analyze surface patterns and identify potential abnormalities.
Defect classification and localization: The system identifies suspected defect categories and determines where they appear in the captured image.
Recording and review: Inspection software records the results, allowing operators to review defect locations and investigate recurring quality issues.
Detection performance depends on image resolution, lighting, fabric texture, production speed and the model's ability to recognize the target defect. A system should therefore be tested using representative fabric samples rather than evaluated on specifications alone.
A broken warp yarn occurs when a lengthwise yarn in woven fabric breaks or is missing, creating a visible irregularity in the fabric structure. Depending on the fabric construction and defect size, the abnormality may appear as a gap, a line or a disruption in the regular weave pattern.
How AI can help:
Capture the fabric structure: Cameras record the surface texture and repeating weave pattern.
Identify structural irregularities: Image analysis looks for unexpected gaps or interruptions in the yarn arrangement.
Locate suspected defects: The system marks the affected image area so that operators can review the position.
Record the result: Defect records can help quality teams compare findings across inspected fabric.
Warp breaks can be difficult to distinguish from normal variations in texture, especially when fabric patterns are complex. Detection should be validated across the relevant fabric types, yarn structures and operating conditions.
Oil stains can appear as dark, glossy, discolored or otherwise irregular areas on fabric. Their appearance varies with fabric color, fiber type, surface texture, oil composition and lighting.
How AI can help:
Capture visual differences: Cameras record changes in color, brightness or surface appearance.
Analyze local anomalies: AI models compare the observed area with expected fabric patterns.
Identify suspicious regions: Areas with unusual visual features can be flagged for review.
Support traceability: Recorded locations can help operators find affected sections of a fabric roll.
Oil stains can be challenging when the contrast between the stain and the surrounding material is low. Lighting and camera settings are therefore important, and different fabric types may require separate testing or model configurations.
Holes create missing material or an interruption in the fabric surface. Depending on their size and location, they may appear as dark openings, irregular edges or unexpected changes in the fabric's structure.
How AI can help:
Capture surface discontinuities: Cameras record changes in the fabric's visible structure.
Identify unusual gaps: The system analyzes areas that differ from the surrounding texture.
Locate the affected area: Detection software marks the suspected hole for review.
Document the defect: Recorded results support quality checks and defect tracking.
Small holes, low-contrast openings and defects in textured or patterned fabrics may be harder to identify. The inspection setup must provide sufficient image detail and suitable lighting for the target material.
AI cannot reliably identify every defect from an image regardless of conditions. The quality of the captured image directly affects what the inspection system can analyze.
Three factors are particularly important:
Lighting consistency: Uneven illumination, glare and shadows can make defects harder to distinguish.
Fabric characteristics: Color, weave structure, texture and surface finish influence the appearance of defects.
Production conditions: Fabric movement, inspection speed and camera setup affect image clarity and the system's ability to locate defects.
A practical evaluation should include the fabric types used in production, known examples of the target defects and the intended operating speed.
Finding a defect is only part of quality control. Textile manufacturers also need to understand where it occurs and how inspection information can be used.

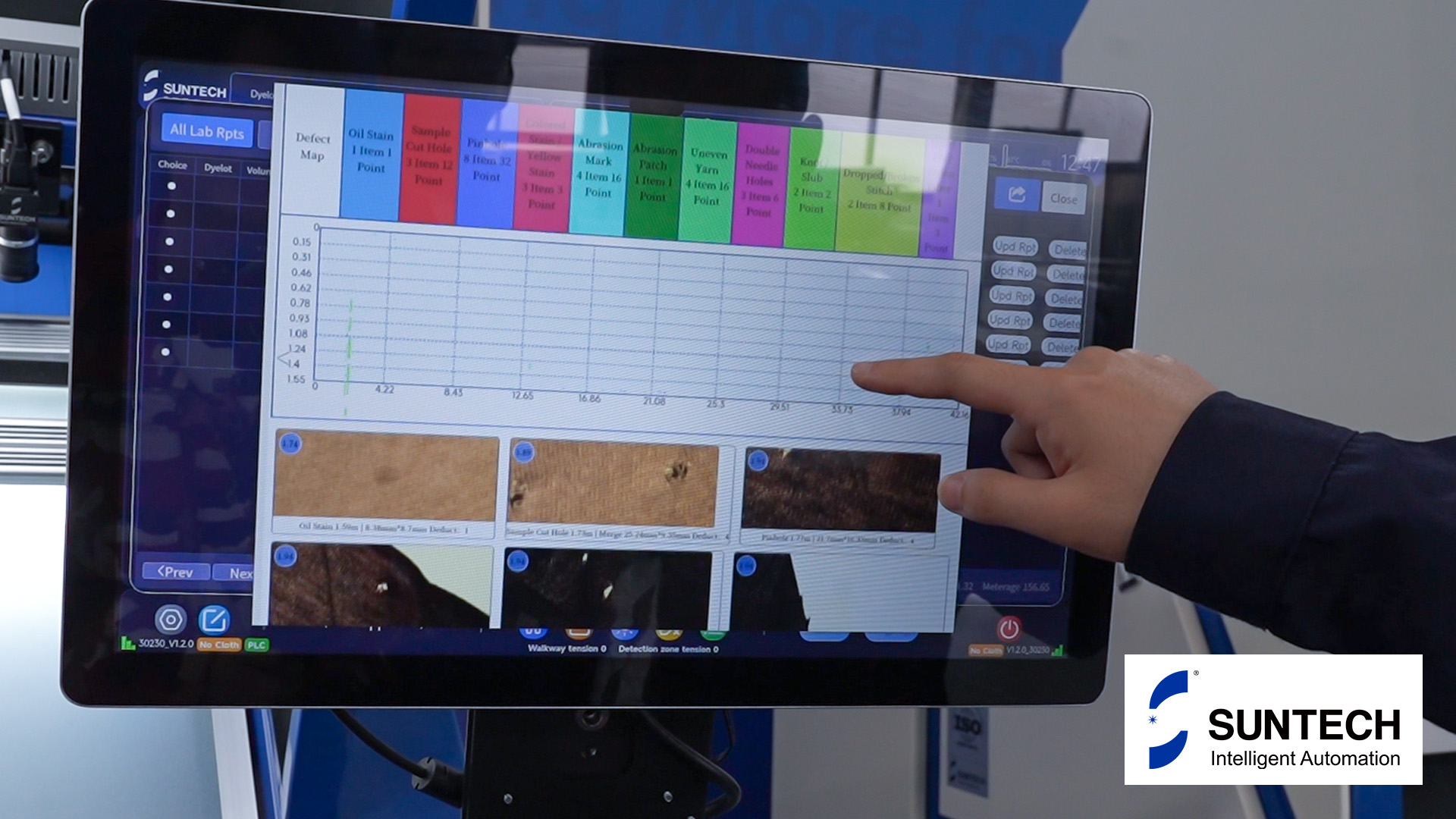

A system with defect-location records or defect mapping can help quality teams review detected areas, locate problems on the inspected fabric and investigate recurring issues. The usefulness of this information depends on the system's recording functions and how the factory incorporates inspection results into its quality workflow.

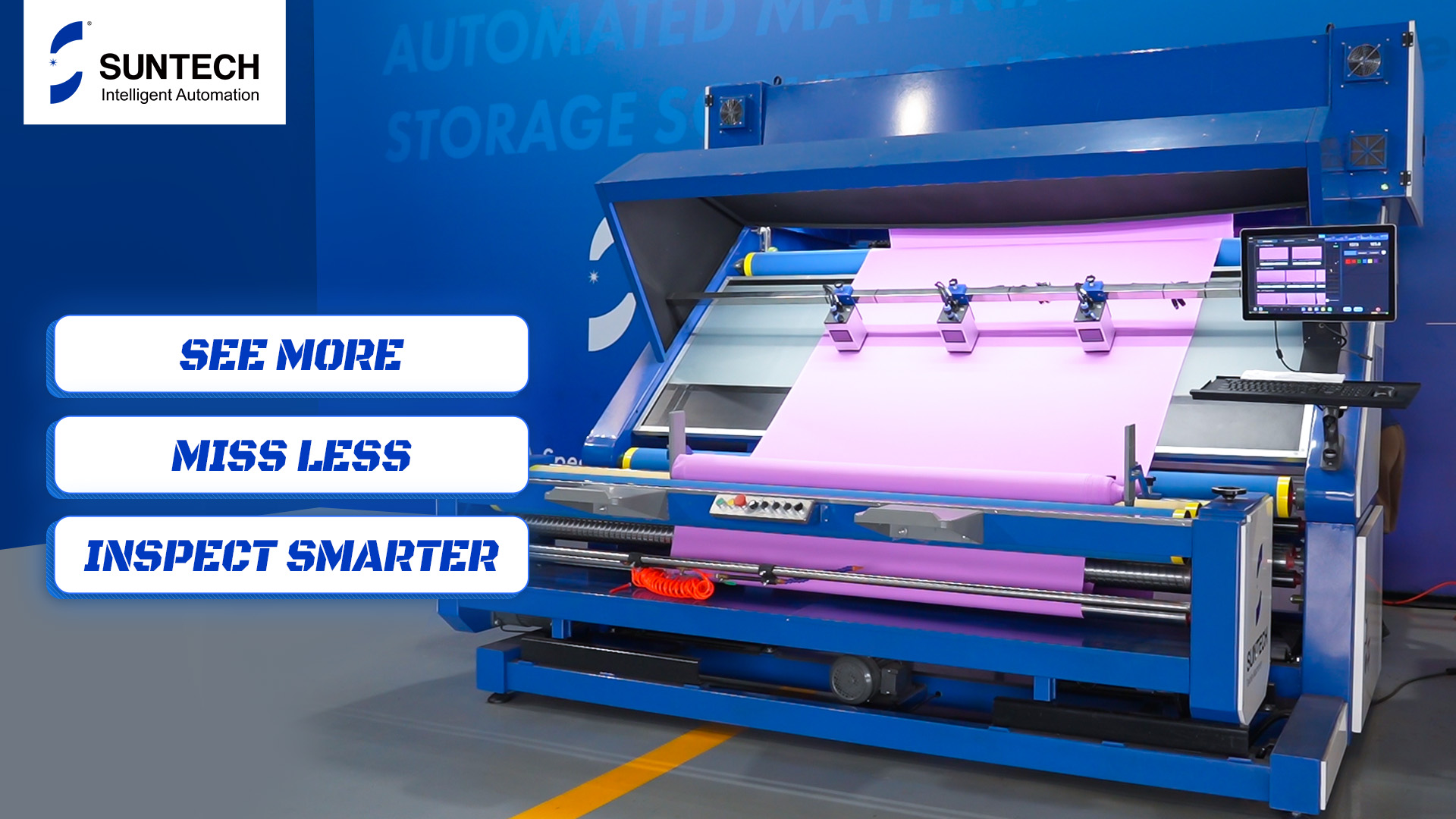

SUNTECH's ST-Thinkor AI Visual Inspection System lists automatic defect mapping among its features. Its published product information also lists an inspection speed of up to 80 m/min. These are manufacturer-listed specifications; actual performance should be confirmed under the factory's fabric and operating conditions.
https://www.suntech-machinery.com/
The published product page does not, by itself, confirm that every specific defect category will be detected under all conditions. Buyers should therefore ask the supplier to evaluate representative samples containing broken warp yarns, oil stains and holes before finalizing the application requirements.
Before selecting an AI fabric inspection system, textile manufacturers should:
Prepare representative fabric samples with known defects.
Identify the defect categories that matter most to product quality.
Agree on testing conditions and evaluation criteria with the supplier.
Review missed defects and false detections, not just successful detections.
Confirm how defect locations and inspection results are recorded.
This process helps manufacturers understand whether the system can meet their actual quality requirements.
AI fabric defect detection can help textile manufacturers identify structural irregularities, stains and holes through image analysis, defect localization and inspection records. However, reliable results depend on the target fabric, defect characteristics, image quality and system configuration.
For textile mills considering automated inspection, representative sample testing is essential. It helps verify detection performance and determine whether an AI inspection system fits the factory's quality standards and production workflow.
Explore SUNTECH's ST-Thinkor AI Visual Inspection System to learn more about AI-assisted fabric inspection and automatic defect mapping.
Can AI detect broken warp yarns, oil stains and holes?
Machine-vision research has demonstrated detection of these defect types. Actual performance depends on the system, fabric and inspection conditions.
https://www.suntech-machinery.com/
Can AI detect defects in real time?
Some automated inspection systems analyze fabric images as the material moves through the inspection area. Achievable performance depends on camera setup, processing capability and operating speed.
Does AI completely replace manual fabric inspection?
Not necessarily. AI can assist with image analysis and defect recording, while operators remain important for reviewing results and managing quality decisions.
How can a factory verify detection performance?
Test the system with representative fabric samples and known defects, then review detection results, missed defects and false detections against agreed criteria.
