Fabric defects do not always become visible at the same point in production. Some are difficult to identify consistently across long rolls, while others may be overlooked when operators perform repetitive inspection tasks for extended periods.
For textile manufacturers, the consequences go beyond a single missed defect. Undetected faults can lead to additional sorting, rework, material waste, customer complaints, and disputes over fabric quality.
Three challenges are particularly important.
Inconsistent inspection results. Different operators may interpret the same defect differently. Fatigue and working conditions can also affect inspection consistency.
Limited inspection capacity. When production volume increases, mills may need additional inspection labor or longer working hours to maintain quality checks.
Insufficient defect traceability. Without structured records of defect locations and types, quality teams may struggle to identify recurring problems or determine where further investigation is needed.
AI fabric inspection addresses these challenges by introducing camera-based inspection and software-supported defect recording into the quality control process.
An AI fabric inspection system combines image acquisition, defect recognition, and inspection data management. Instead of relying exclusively on an operator to observe the moving fabric, the system processes visual information and records inspection results.
The process generally involves four stages.

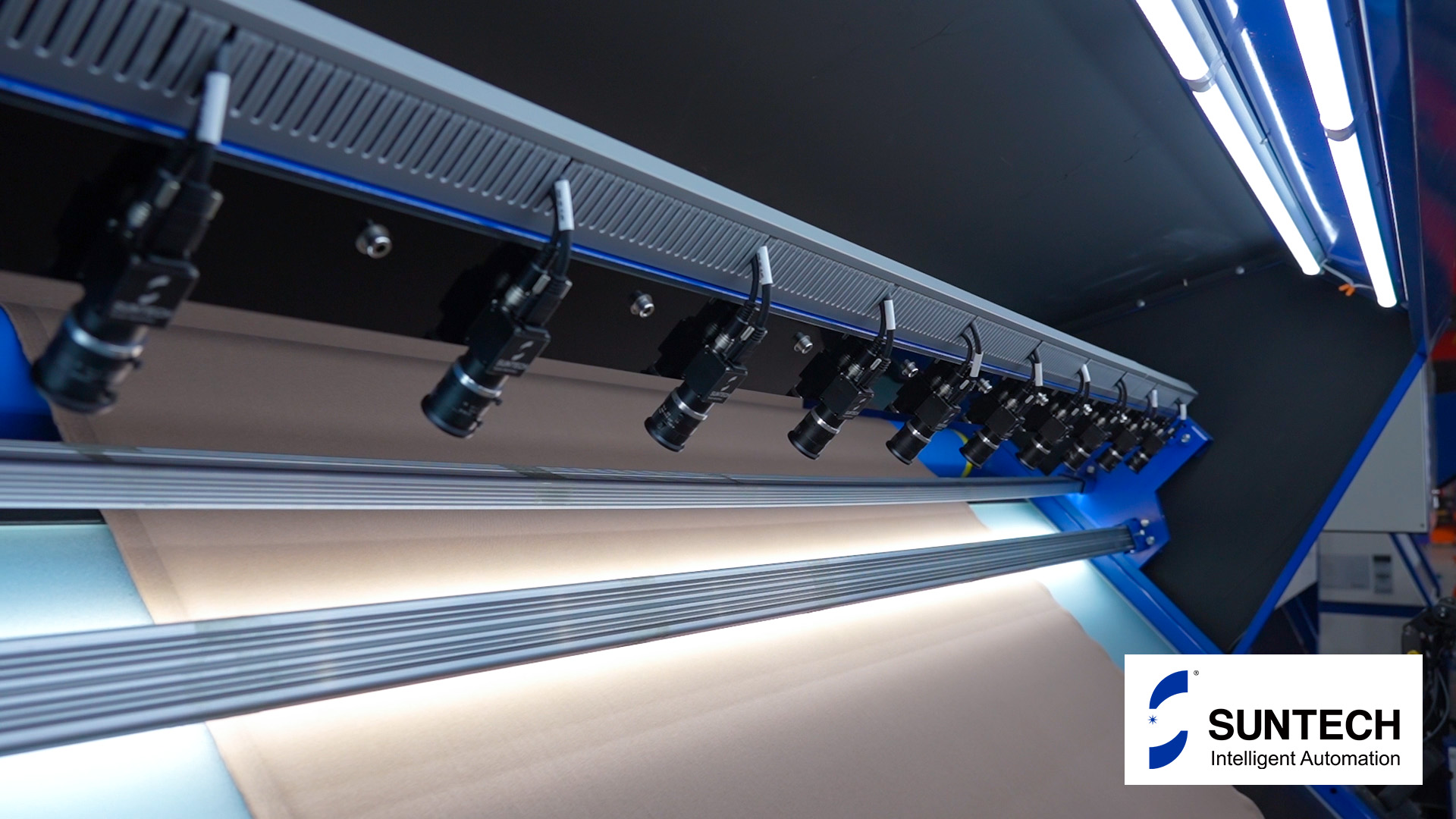

Step 1: Capture fabric surface images. Cameras collect images as the fabric moves through the inspection area. Image quality and lighting conditions influence the information available to the inspection system.
Step 2: Analyze the images. AI algorithms analyze fabric surface patterns to identify potential defects. The ability to recognize a particular defect depends on the system’s capabilities, fabric construction, and inspection conditions.
Step 3: Locate and record defects. The system records defect information so that quality teams can review inspection results and locate areas requiring attention.
Step 4: Support quality decisions. Operators and quality managers can use the inspection records to investigate recurring defects, review fabric quality, and improve process control.
AI inspection does not eliminate the need for quality management. Its value lies in providing a more consistent inspection process and more structured information for human decision-making.
Manual inspection requires operators to maintain attention while examining moving fabric. This becomes challenging during long production runs and repetitive work.

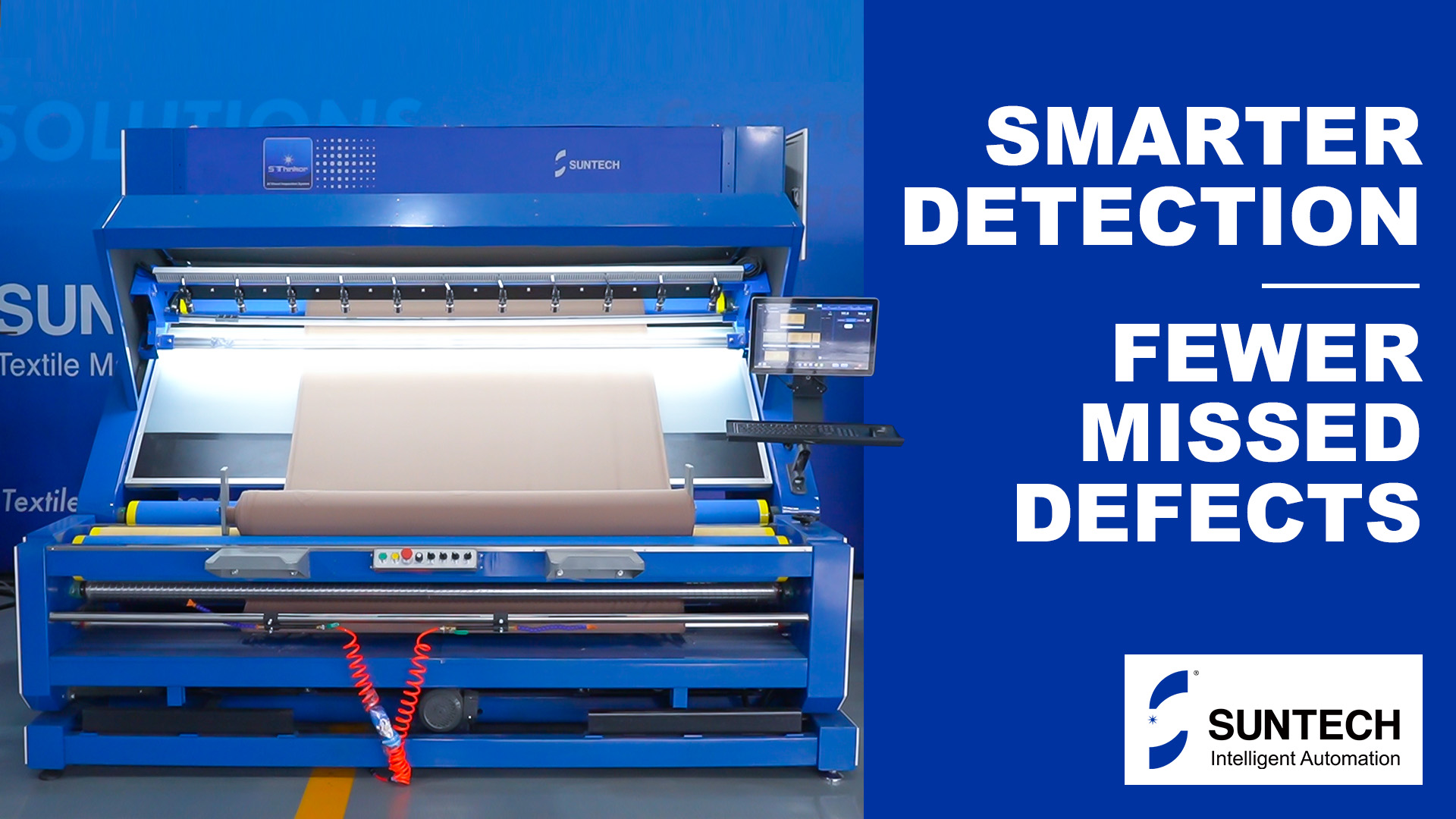

SUNTECH’s ST-Thinkor is designed for continuous AI-assisted fabric inspection, with a listed inspection speed of up to 80 m/min. This creates an opportunity to increase inspection capacity, depending on the fabric, line configuration, and actual operating speed.
Finding a defect is only part of the quality control process. Teams also need to understand where it occurs and whether similar defects appear repeatedly.

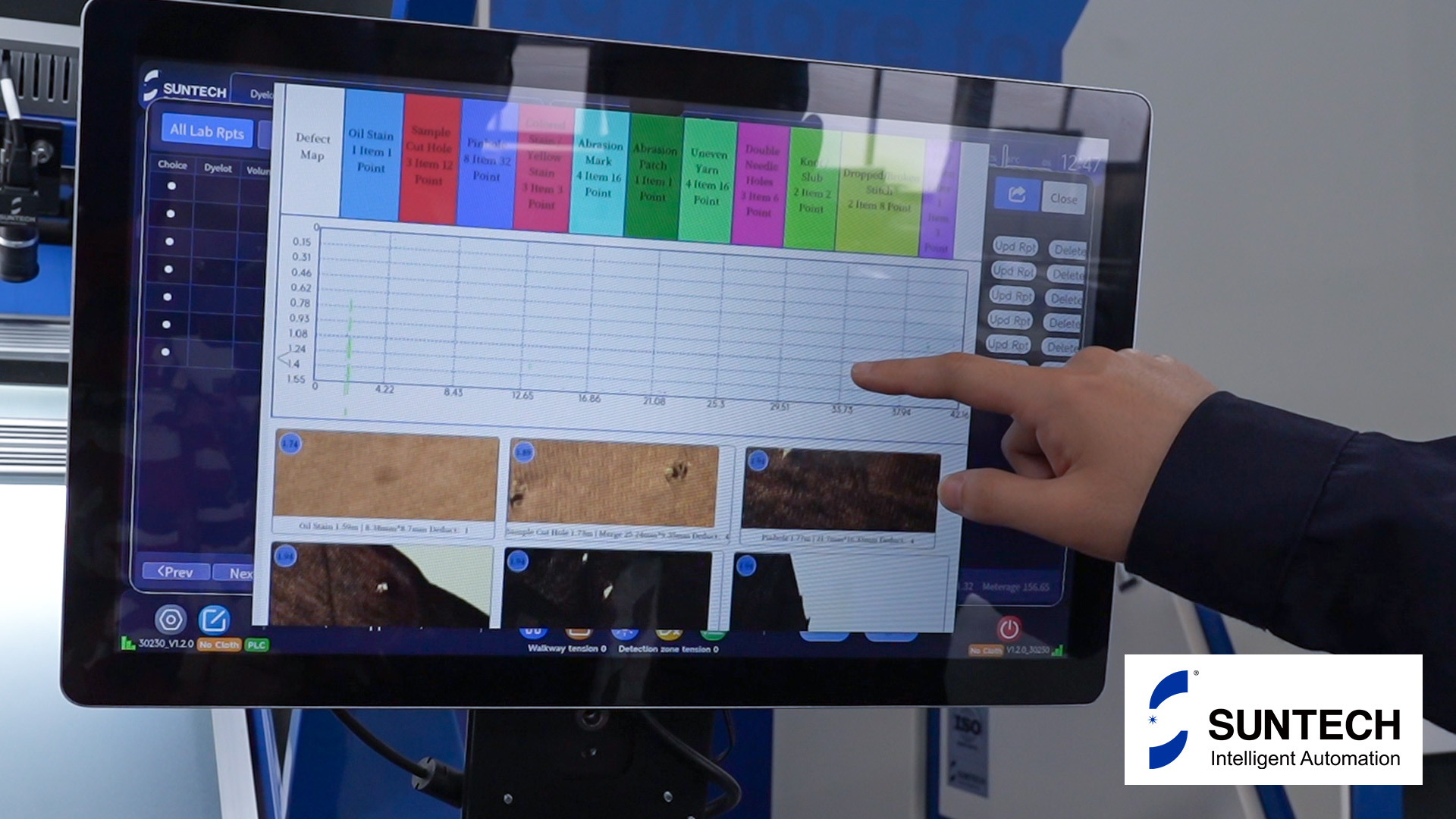

SUNTECH’s AI Visual Inspection System includes automatic defect mapping. Recorded defect information can support further review and help quality teams investigate patterns across inspected fabric.
For mills experiencing recurring defects, this information can help direct attention toward specific production stages instead of relying entirely on end-of-line inspection results.
When inspection decisions depend heavily on individual experience, quality records can vary between operators and shifts.
An AI-assisted system applies its configured inspection process to the captured images. This supports more consistent defect identification and documentation, although the results still depend on algorithm performance, fabric characteristics, and system setup.
When evaluating an AI fabric inspection system, buyers should compare inspection speed, fabric width, minimum detectable defect size, inspection performance, and compatibility with existing equipment.
SUNTECH lists the following specifications for ST-Thinkor.
Evaluation item | SUNTECH ST-Thinkor specification |
Inspection speed | Up to 80 m/min |
Stated inspection rate | ≥90% |
Minimum defect size | ≤0.1 mm |
Fabric color | Single color; color-difference detection available |
System integration | ERP/SAP compatibility listed by SUNTECH |
Inspection function | AI visual inspection and automatic defect mapping |
These specifications are published on the SUNTECH product page. They should be treated as manufacturer-listed specifications, not a guarantee that every fabric or defect will achieve the same inspection results.
Before selecting equipment, buyers should confirm the definition of inspection rate, the test conditions used to measure performance, and the types of defects included in the evaluation.
AI-assisted inspection and manual inspection have different strengths. The right choice depends on production requirements, fabric characteristics, quality standards, and the level of automation required.For mills evaluating conventional inspection equipment, SUNTECH’s Fabric Inspection Machine provides another option to consider based on fabric type and production requirements.
Comparison factor | Manual inspection | AI-assisted inspection |
Defect identification | Relies on operator observation and experience | Uses camera images and configured AI algorithms |
Attention over long runs | Can be affected by fatigue | Supports continuous automated image analysis |
Inspection records | Depends on the recording process | Can generate structured inspection data |
Defect mapping | Requires a suitable manual recording method | Automatic defect mapping is available on ST-Thinkor |
Adaptability | Depends on operator expertise | Depends on fabric compatibility and system configuration |
Best evaluation method | Review operator consistency and inspection capacity | Conduct representative fabric trials and verify detection results |
AI inspection should not be judged by speed alone. A system that runs quickly but cannot reliably identify the defects relevant to a mill may not deliver the expected quality benefits.
A practical evaluation should include representative fabric samples, known defect examples, agreed acceptance criteria, and a review of both missed defects and false detections.
Before investing in automated fabric inspection, textile manufacturers should evaluate five factors.
Fabric compatibility. Confirm fabric type, color, texture, width, and surface characteristics. Different materials may present different inspection challenges.For knitted fabrics that require careful tension control during inspection, SUNTECH’s Knitted Fabric Inspection Machine is another equipment option to evaluate.
Defect requirements. Identify the defects that matter most to product quality. Test whether the proposed system can detect them under realistic production conditions.
Required production speed. Compare the expected line speed with the machine’s operating range. Maximum rated speed should not be confused with guaranteed performance for every fabric.
Integration with existing equipment. Check whether the AI inspection system can be installed on the existing fabric inspection line or integrated with the planned production workflow.
Data and reporting requirements. Determine how defect locations and inspection results will be reviewed, exported, and used by the quality team. Confirm any ERP or SAP integration requirements with the supplier.
A controlled trial is often the most useful next step. It allows the mill to compare actual inspection results against its existing process before making a purchasing decision.
SUNTECH ST-Thinkor is worth evaluating if your mill wants to introduce AI-assisted defect detection, improve inspection consistency, or make fabric defect records easier to review.
Its listed inspection speed of up to 80 m/min, automatic defect mapping, and stated inspection rate of at least 90% provide starting points for a technical assessment.
Suitability should be confirmed against the mill’s actual fabrics, defect standards, production speed, and equipment layout. Buyers should also request clarification of test methodology and validate detection performance using representative samples.
For manufacturers planning broader automation, explore SUNTECH’s Automation Solutions to identify suitable options for different production requirements.These options can be assessed alongside the AI inspection system when planning an integrated fabric inspection workflow.
AI fabric inspection uses cameras and artificial intelligence algorithms to analyze fabric surfaces, identify potential defects, and record inspection information.
AI inspection systems can analyze images as fabric moves through the inspection area. Actual performance depends on system configuration, fabric characteristics, defect types, and operating speed.
SUNTECH lists an inspection speed of up to 80 m/min, normally 40-60m/min. The achievable speed should be validated against the fabric and production requirements.
Not necessarily. AI can automate image analysis and support defect recording, while operators remain important for reviewing results, handling exceptions, and managing quality decisions.
Use representative fabric samples with known defects, agree on acceptance criteria, and compare detected defects against a verified reference. Ask the supplier to explain the inspection-rate calculation and test conditions.
AI fabric inspection can help textile mills move from observation-based quality checks toward more consistent, traceable inspection processes. The most important factors are not AI claims alone, but verified defect detection performance, production compatibility, useful inspection data, and measurable results under real operating conditions.
SUNTECH ST-Thinkor provides a practical starting point for evaluating AI-assisted fabric inspection, with published specifications and automatic defect mapping. A fabric trial and technical assessment can help determine whether it fits your mill’s quality control requirements.
