In the textile manufacturing industry, shipping defective fabric to buyers is one of the most direct paths to financial loss and reputational damage. When flawed fabric arrives at a garment factory or apparel brand’s cutting floor, it triggers a cascade of costly consequences—ranging from formal penalty claims and rejected shipments to cancelled contracts and damaged supplier relationships.
While traditional quality control relies on catching flaws after rolls are already wound, modern AI fabric inspection flips this model entirely. By shifting quality assurance from post-production checking to proactive, real-time prevention, automated inspection systems help textile mills eliminate quality problems long before rolls ever reach the delivery truck.
Historically, textile mills have treated inspection as a final "checkpoint" at the end of the manufacturing process. However, detecting defects only after a fabric roll is completely woven, dyed, or finished creates significant operational vulnerabilities.
When inspection happens hours or days after weaving, a malfunctioning loom or broken needle may have already produced hundreds of meters of defective material. The mill absorbs the full cost of consumed yarn, energy, labor, and machine time on fabric that ultimately ends up as scrap or discounted B-grade stock.
Manual inspection before shipping is inherently prone to error. Operators scanning fast-moving fabric rolls miss an estimated 30% to 40% of visual defects due to eye fatigue, fast line speeds, and shift distraction. Passing flawed rolls under the assumption that they are "A-grade" leads directly to buyer disputes, chargebacks, and expensive return logistics once the buyer's automated cutting tables detect the issues.

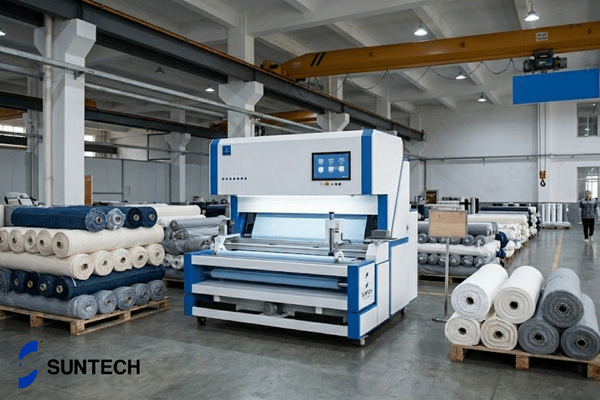

An automated fabric inspection machine integrates high-speed line-scan cameras, specialized optical lighting, and deep learning neural networks directly into production and inspection frames. This setup actively prevents defect escape through three primary operational mechanisms:
The most effective way to prevent quality problems at delivery is to stop them at the point of origin. AI inspection systems continuously analyze the web surface as fabric is formed or processed.
Continuous Defect Alerts: If the system identifies a repeating anomaly—such as a continuous warp streak, a missing pick, or a recurring oil drip—it triggers an immediate alert or automatically halts the loom within seconds.
Minimizing Scrap Volume: By stopping the machine instantly, the system limits the defect to a few centimeters rather than letting it run through an entire 500-meter roll.
Even when minor defects are unavoidable, AI prevents them from becoming "delivery problems" through digital transparency.
Precision Defect Mapping: The inspection software records the exact X/Y coordinates of every flaw on a digital "map" tied to the roll's barcode.
Optimized Downstream Processing: This digital map allows the mill to either prune out defective segments before packing or share the map directly with the buyer's automated cutting software. Buyers can then route pattern cuts around known flaws, turning a potential rejection into a usable, high-yield roll.
Deep learning vision models are trained on vast datasets of textile anomalies, allowing them to instantly classify and log flaws across wovens, knits, and technical fabrics before final wrapping:
Structural & Weaving Flaws: Broken warp/weft ends, double picks, reed marks, drop stitches, needle lines, and selvage tears.
Surface Anomaly & Contamination: Oil spots, yarn slubs, fly waste, pinholes, and foreign fiber inclusions.
Dyeing & Finishing Imperfections: Color streaks, uneven coating distribution, crease marks, and width/skewing variations.
Transitioning to AI-driven textile quality control delivers measurable financial and operational advantages for export-oriented textile manufacturers:
Elimination of Buyer Chargebacks: Guaranteeing that shipped rolls contain zero unmapped or uncounted defects protects the mill from financial penalties and claim deductions.
Lower Customer Retention Costs: Delivering consistently high-grade fabric builds deep trust with major apparel brands, establishing the mill as a tier-one vendor.
Data-Driven Plant Maintenance: Centralized AI analytics highlight which looms or processing lines produce the highest defect frequencies, enabling proactive equipment maintenance before major breakdowns occur.
Preventing quality problems before delivery is no longer about adding more manual inspectors to the final packing line—it is about deploying intelligent vision systems that monitor production in real time. By identifying defects at their origin, enforcing objective grading standards, and generating precise digital roll maps, AI fabric inspection ensures that every roll shipped out meets the exact standards your customers expect.
